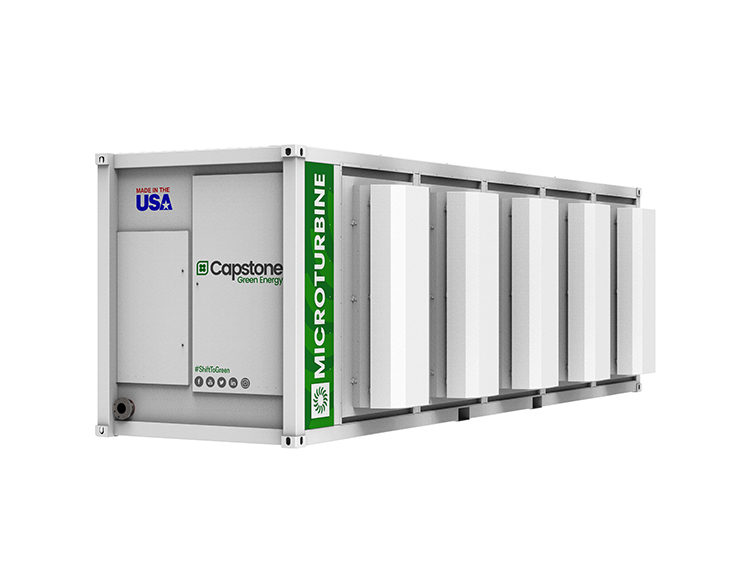

C1000S
Expandable
Can be paralleled up to multiple megawatts of power
Specifications
Rating:
1,000 kW
Electrical Efficiency LHV:
33%
Combined Heat And Power Efficiency::
Up to 90%
Voltage:
400-480 VAC
Frequency:
50/60 Hz, Grid Connect
10-60 Hz, Stand Alone
Electrical Service:
3-Phase, 4-Wire Wye
Width:
3.0 m (117 in)
Depth:
9.1 m (360 in)
Height:
3.03 m (119 in)
Weight:
Grid Connect – 17,100 kg (37,700 lbs); Dual Mode – 20,650 kg (45,500 lbs)
Net Heat Rate LHV:
10.9 MJ/kWh (10,300 BTU/kWh)
Exhaust Temperature:
280 ºC (535ºF)
Exhaust Gas Flow:
6.7 kg/s (14.7 lbm/s)
Compatible Fuels:
Pipeline Natural Gas, Biogas (Landfill, Digester), LPG, Raw Natural Gas (Sour, Associated Gas)
Notes
- Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
- Specifications based on high pressure natural gas systems. Values may vary with other fuel types.
Specifications are not warranted and are subject to change without notice.
